| Product Name |
AP-ALDM2 |
| Base Clock |
6.29MHz (surported mode1) |
| Interface |
-RS-232C |
IE-Bus
Controle IC |
-NEC ELECTRONICS uPD72042 |
| Setup the Local Address |
-Enable to set by DIP switch |
| Macro Language |
-Control field has only surported "F" (data writing).
-Enable to transmit receive data calculated (+, -, AND, OR).
-Enable to load macro or subroutin at regular time intervals, and transtmit
or calculate.
-Enable to load macro or subroutin by key input.
-Enable to use integer variable.
-It is avilable Condision judgement by pattern matching is possible to
mask bit. |
Surported
Machine |
Host |
-DOS/V surported Serial Interface (D-SUB 9pin connector) |
| OS |
-Windows95/98/Me/2000/XP |
| Operating Voltage |
DC 12V |
| Drain Current |
500mA (typ) |
| Body Size |
W140 X D110 X H35 (mm) |
| Accessories |
-2 Wire harnesses for exclusive use (Alligator clip and without clip)
-AC Adapter

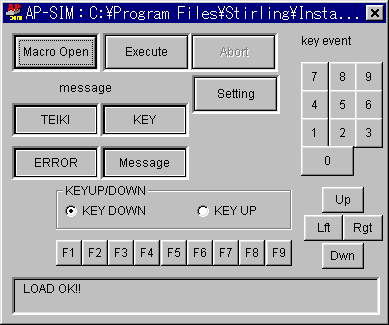

-Application Software (FD)
-Manual |
