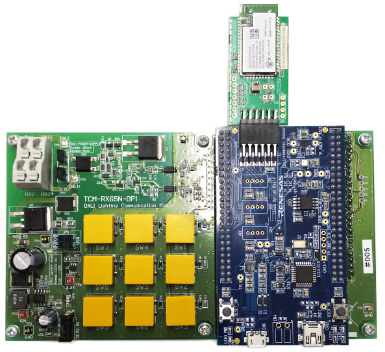

商品写真

DALI Option Board for RX65N Cloud Kit
TCM-RX65N-OP1

「chip 1 stop」で購入

Overview

TCM-RX65N-OP1 is the option board conforming to DALI-2, for adding DALI communication functions to "Renesas RX65N Cloud Kit".

Device Combination

TCM-RX65N-OP1 is used in combination with Renesas RX65N Cloud kit.

TCM-RX65N-OP1 Device Combination

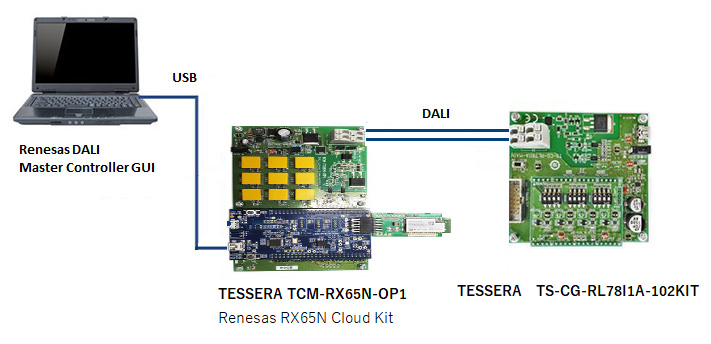

Connection Example

TCM-RX65N-OP1 Connection Example

Specification

Product Name TCM-RX65N-OP1
Configuration Renesas RX65N Cloud Kit (Sold separately, 3 boards)
TCM-RX65N-OP1 (1 board)
On-board CPU
on Renesas RX65N Cloud Kit
Renesas Electronics RX65N (R5F565NEDDFP)
ProgramFlash: 2048 KB
SRAM: 640 KB
DataFlash: 32KB
Functions DALI-2 interface
DALI-2 simple power supply (AC adapter is required)
Lighting control switches (9ch)
Board connection interface *
* This product is intended to be used with the "Renesas RX65N Cloud Kit".
Accessories TCM-RX65N-OP1 *
* AC adapter is sold separately
(Specification:EIAJ#2 DC5V/2A or more center +)

Software

Multiple DALI communication paths are available in this system for dimming control of lighting equipment connected after "Control Gear".
3 operation modes are available depending on your purpose.

DALI GUI Operation Mode: Control dimming by "DALI Master Controller GUI" application on your PC via USB.

AWS Web Operation Mode: Control dimming by "AWS Web Application" via WiFi module on your "RX65N Cloud Kit".

Switch Operation Mode: Control dimming via matrix button switch on this "Option Boad".

* PC, "RX65N Clout Kit", "Control Gear", lighting equipment as load and AWS setting are to be supplied by our customers.

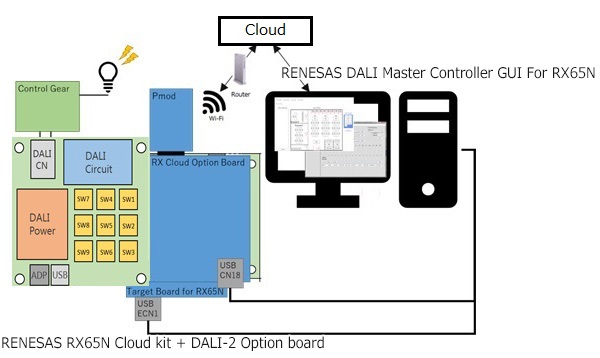

TCM-RX65N-OP1 System Diagram

(Reference Source:Renesas Electronics Corporation)

Information

Please refer to Renesas Electronics website for Firmware and Development Tool.
https://www.renesas.com/us/en/search/keyword-search.html#q=r01an5396&genre=document&rows=20

RX65N Group APPLICATION NOTE DALI-2 lighting communication using RX65N Cloud kit
(Control Device/Application Controller)
